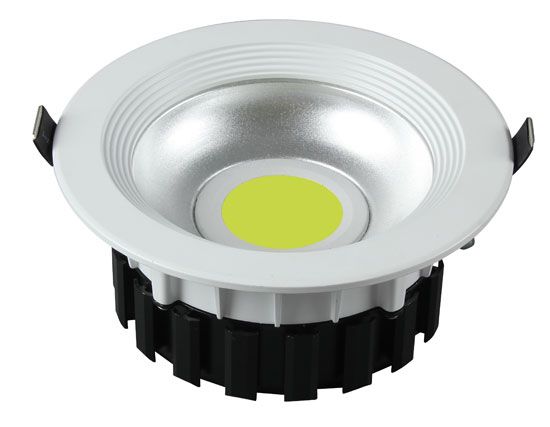

LED DOWN LIGHT
DST-D01 005 053
| ITEM NO. | DST-D01 005 053 | DST-D01 010 054 | DST-D01 015 055 |
| DIMENSION (MM) | Φ104xH61 | Φ130xH61 | Φ162xH71 |
| CUT HOLE (MM) | Φ85 | Φ105 | Φ135 |
| LED POWER | 5W | 10W | 15W |
| LED QTY | 1PC | 1PC | 1PC |
| REFLECTOR DEGREE | 60D | 60D | 60D |
| LUMINOUS FLUX | 400LM | 800LM | 1200LM |
| INPUT VOLTAGE | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| LED CHIP | JD | JD | JD |
| COLOR TEMPERATURE | 3000~6500K | 2800~6500K | 2800~6500K |
| OPERATING TEMPERATURE | -15℃~50℃ | -15℃~50℃ | -15℃~50℃ |
| MATERIAL | Aluminum | Aluminum | Aluminum |
| BODY FINISH | Brush Nickel+Black/WH+BK | Brush Nickel+Black/WH+BK | Brush Nickel+Black/WH+BK |
